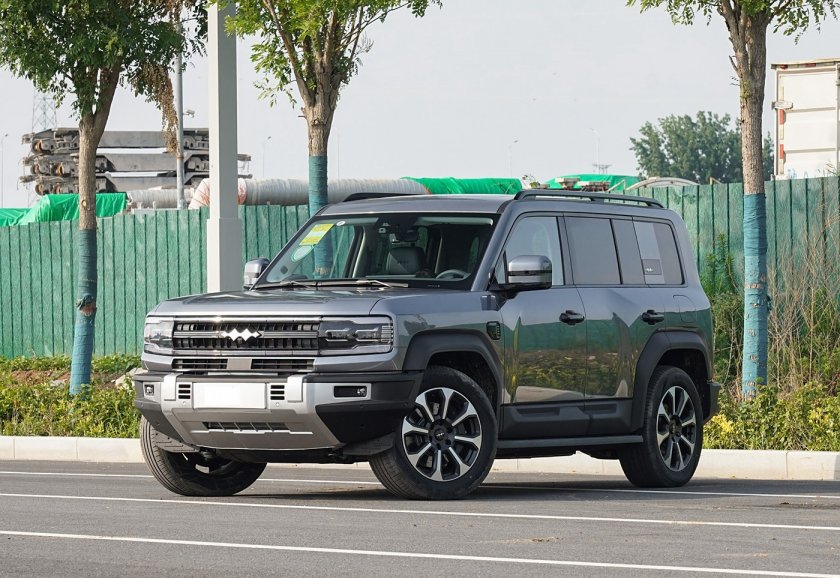

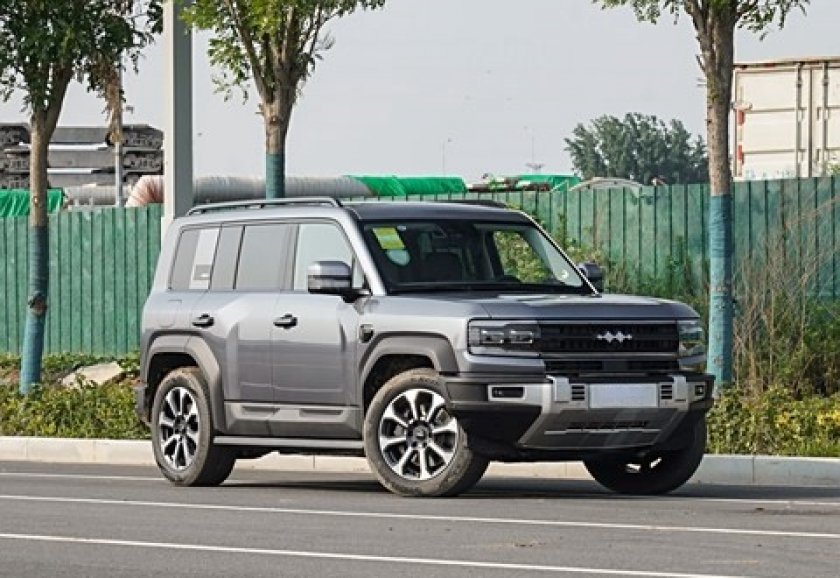

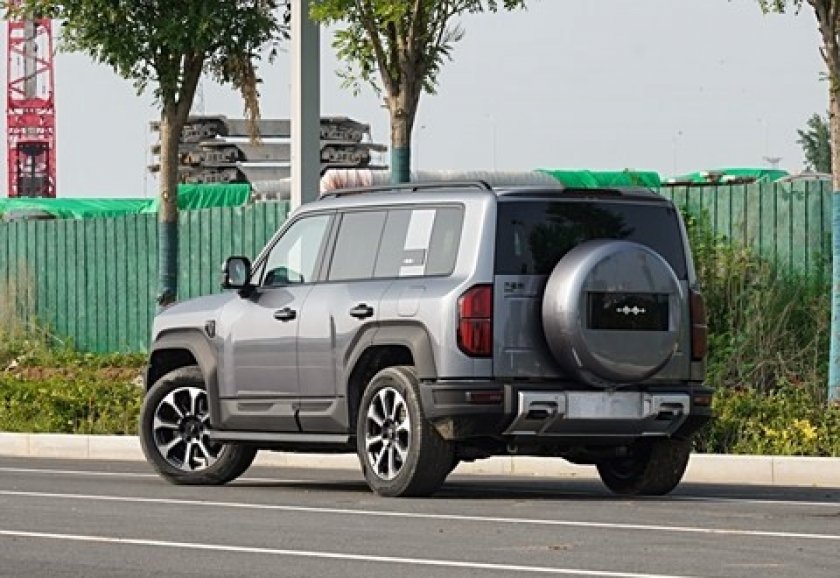

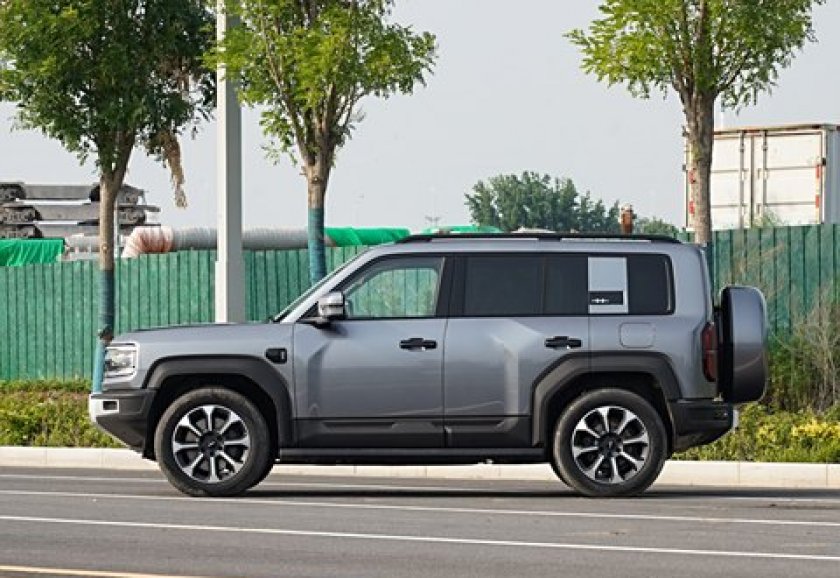

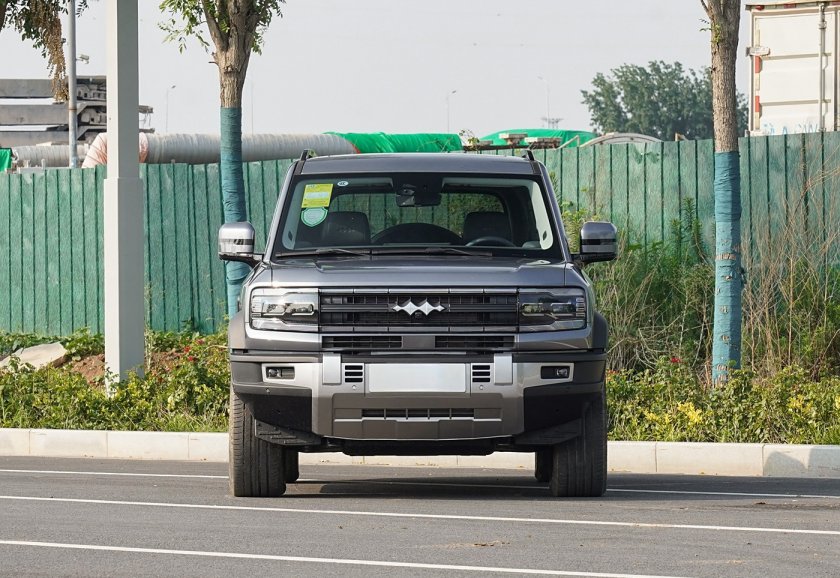

BYD Equation Leopard 5 2024 Yunnian Deluxe Plug-in Hybrid SUV
| Basic information | |
| Brand name | Equation Leopard |
| Model | Leopard 5 2024 Yunnian Deluxe Version SUV |
| LEVEL | Medium SUV |
| Power Type | Plug-in hybrid |
| Emission standard | Euro Ⅵ |
| WLTC pure electric cruising range (km) | 100 |
| CLTC pure electric cruising range (km) | 125 |
| Battery fast charging time (hours) | 0.27 |
| Battery fast charging capacity range (%) | 30-80 |
| Maximum power(kW) | 505 |
| Maximum torque (N·m) | 760 |
| Transmission | E-CVT continuously variable transmission |
| Body structure | 5-door, 5-seater SUV |
| Engine | 1.5T 194hp L4 |
| Motor(Ps) | 660 |
| Length*width*height (mm) | 4890*1970*1920 |
| Official 0-100km/h acceleration (s) | 4.8 |
| Maximum speed (km/h) | 180 |
| WLTC comprehensive fuel consumption (L/100km) | 1.81 |
| Minimum state of charge fuel consumption (L/100km) WLTC | 7.8 |
| Curb weight (kg) | 2890 |
| Maximum full load mass (kg) | 3265 |
| Total mass of quasi-trailer (kg) | 2500 |
| Body | |
| Length(mm) | 4890 |
| Width(mm) | 1970 |
| Height(mm) | 1920 |
| Wheelbase(mm) | 2800 |
| Front wheel track(mm) | 1660 |
| Rear wheel track(mm) | 1660 |
| Minimum ground clearance with full load (mm) | 310 |
| Approach angle | 39 |
| Departure angle | 35 |
| Longitudinal passage angle (°) | 20 |
| Maximum wading depth (mm) | 790 |
| Body structure | SUV |
| Door opening method | Swing door |
| Number of doors | 5 |
| Number of seats | 5 |
| Fuel tank volume (L) | 83 |
| Engine | |
| Engine model | BYD476ZQF |
| Displacement (mL) | 1497 |
| Displacement (L) | 1.5 |
| Intake form | Turbocharging |
| Engine layout | Vertically placed |
| Cylinder arrangement | L |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Valve distributing mechanism | DOHC |
| Maximum horsepower (Ps) | 194 |
| Maximum power(kW) | 143 |
| Maximum torque (N·m) | 273 |
| Maximum net power (kW) | 135 |
| Energy type | Plug-in hybrid |
| Fuel grade | 92# |
| Fuel supply method | Direct injection |
| Cylinder head material | Aluminum alloy |
| Cylinder material | Aluminum alloy |
| Emission standard | Euro VI |
| Electric Motor | |
| Front motor model | TZ220XYAB |
| Rear motor model | TZ200XYA |
| Motor Type | Permanent magnet/synchronous |
| Total motor power (kW) | 485 |
| Total motor horsepower (Ps) | 660 |
| Total motor torque (N-m) | 760 |
| Maximum power of front motor (kW) | 200 |
| Maximum torque of front motor (N-m) | 360 |
| Maximum power of rear motor (kW) | 285 |
| Maximum torque of rear motor (N-m) | 400 |
| System comprehensive power (kW) | 505 |
| System comprehensive power (Ps) | 687 |
| System comprehensive torque (N·m) | 760 |
| Number of drive motors | Dual motor |
| Motor layout | Front+rear |
| Battery Type | LFP battery |
| Battery brand | FD |
| Battery specific technology | Blade battery |
| Battery cooling method | Liquid cool |
| WLTC pure electric cruising range (km) | 100 |
| CLTC pure electric cruising range (km) | 125 |
| NEDC comprehensive range (km) | 1200 |
| Battery energy (kWh) | 31.8 |
| Fast charging function | Support |
| Fast charging power (kW) | 100 |
| Battery fast charging time (hours) | 0.27 |
| Battery fast charging capacity range (%) | 30-80 |
| Slow charging interface location | Right rear |
| Fast charging interface location | Right rear |
| External AC discharge power (kW) | 6 |
| Transmission | |
| Abbreviation | E-CVT continuously variable transmission |
| Number of gears | Continuously variable speed |
| Gearbox type | Electronic continuously variable transmission (E-CVT) |
| Chassis steering | |
| Drive mode | Front four-wheel drive |
| Four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension |
| Rear suspension type | Double wishbone independent suspension |
| Assist type | electric assist |
| Body structure | Non-load-bearing |
| Wheel brake | |
| Front brake type | Ventilated disc |
| Rear brake type | Ventilated disc |
| Parking brake type | Electronic parking |
| Front tire specification | 265/65 R18 |
| Rear tire specification | 265/65 R18 |
