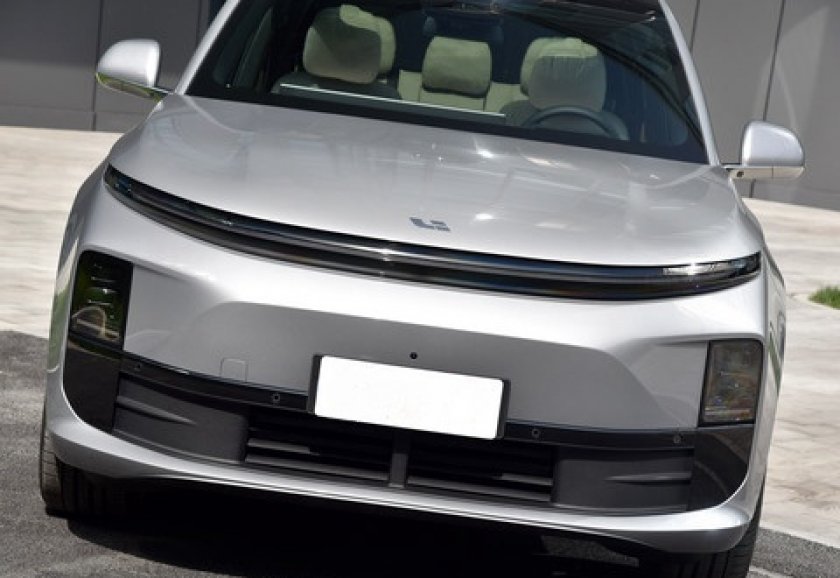

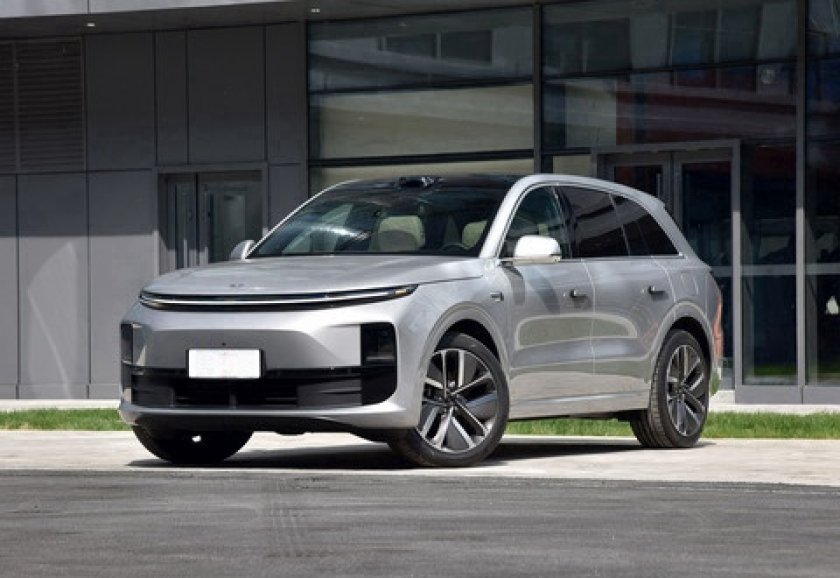

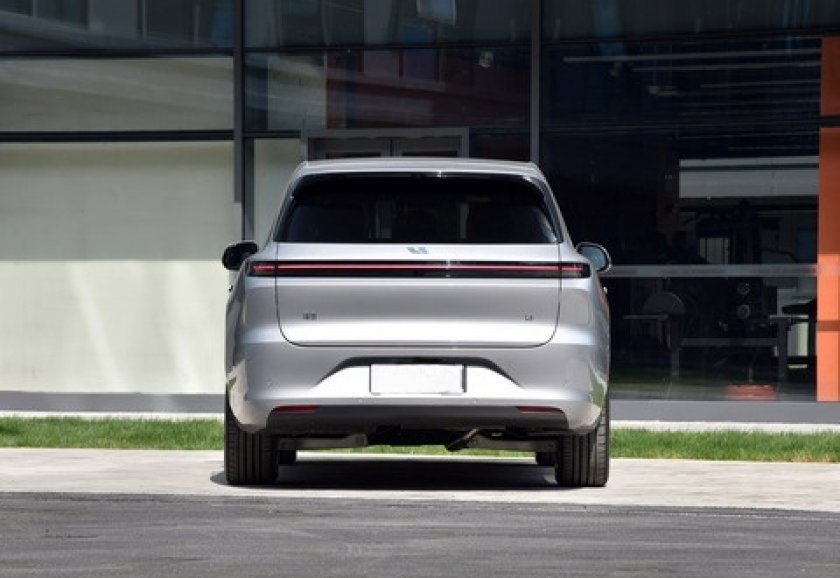

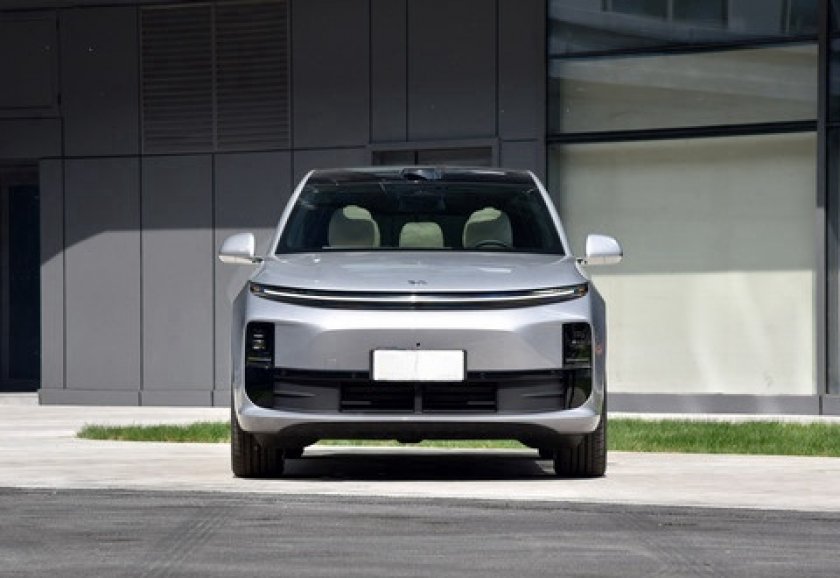

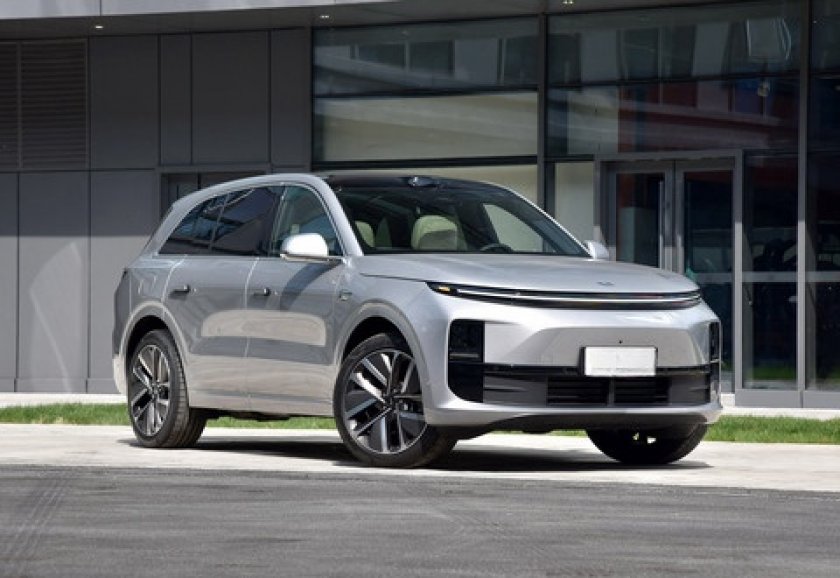

LIXIANG L6 MAX SUV 2024 LI Extended Range Car
| Basic information | |
| Brand name | LIXIANG |
| Model | L6 2024 Max |
| LEVEL | Medium-large SUV |
| Power Type | Extended-range |
| Emission standard | Euro Ⅵ |
| WLTC pure electric mileage (km) | 182 |
| CLTC pure electric mileage (km) | 212 |
| Battery fast charging time (hours) | 0.33 |
| Battery slow charging time (hours) | 6 |
| Battery fast charging capacity range (%) | 20-80 |
| Battery slow charging capacity range (%) | 0-100 |
| Maximum power(kW) | 300 |
| Maximum torque(N-m) | 529 |
| Transmission | Electric vehicle single speed gearbox |
| Body structure | 5 doors 5 seats SUV |
| Engine | Extended-range 154-horsepower L4 |
| Motor(Ps) | 408 |
| Length*width*height (mm) | 4925x1960x1735 |
| Official 0-100km/h acceleration | 5.4 |
| Maximum speed (km/h) | 180 |
| WLTC comprehensive fuel consumption (L/100km) | 0.72 |
| Minimum state of charge fuel consumption (L/100km) WLTC | 6.9 |
| Electric energy equivalent fuel consumption (L/100km) | 2.39 |
| Curb weight (kg) | 2345 |
| Maximum full load mass (kg) | 2820 |
| Body | |
| Length(mm) | 4925 |
| Width(mm) | 1960 |
| Height(mm) | 1735 |
| Wheelbase(mm) | 2920 |
| Front wheel track(mm) | 1696 |
| Rear wheel track(mm) | 1704 |
| Approach angle | 20 |
| Departure angle | 21 |
| Body structure | SUV |

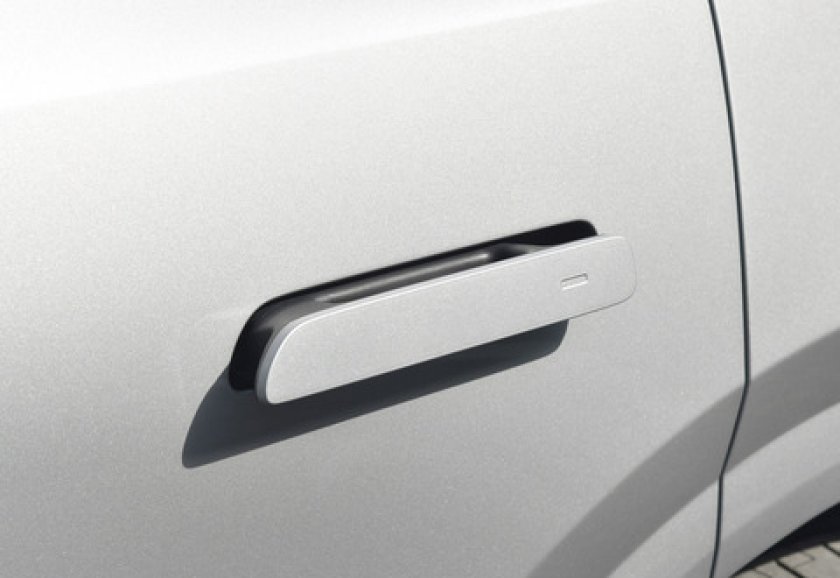

| Car door opening method | Swing door |
| Number of doors (number) | 5 |

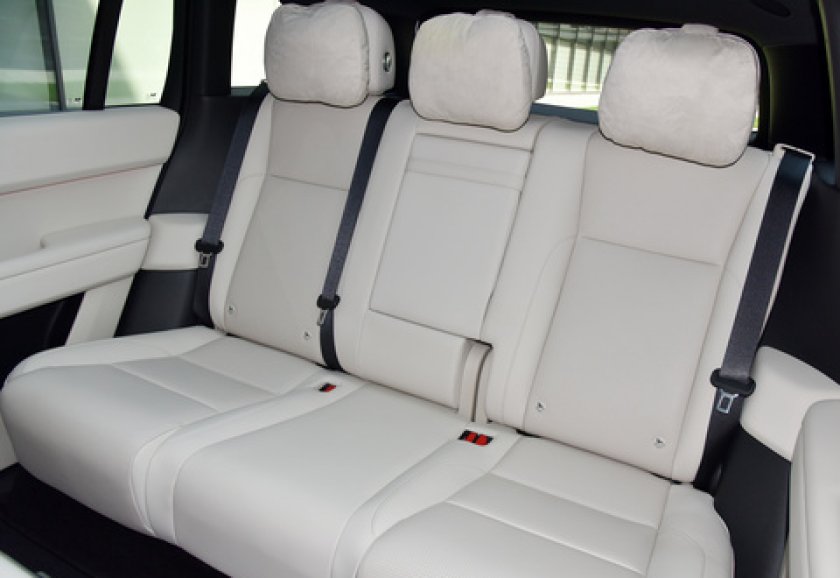

| Number of seats (seats) | 5 |

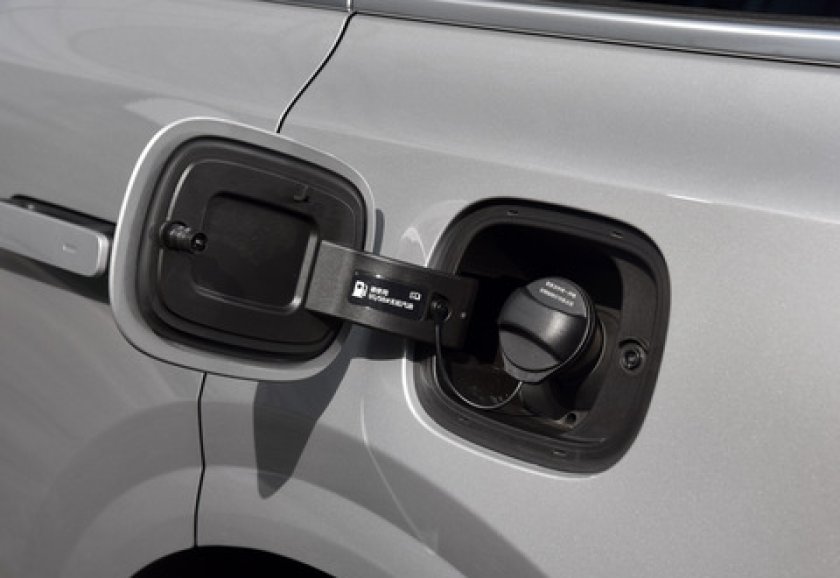

| Fuel tank volume (L) | 60 |
| Drag coefficient (Cd) | 0.269 |

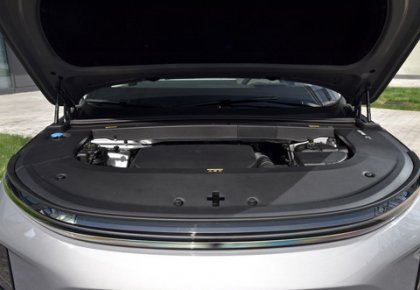

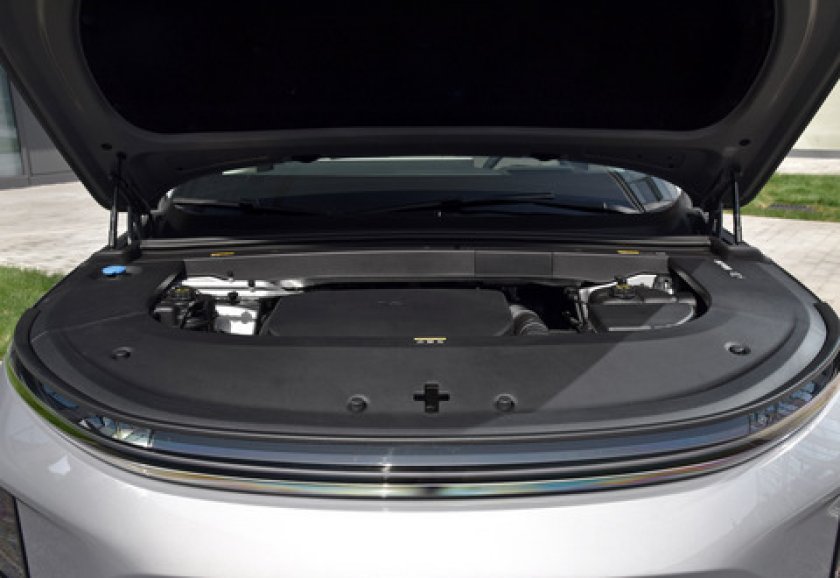

| Engine | |
| Engine model | L2E15M |
| Displacement (mL) | 1496 |
| Displacement (L) | 1.5 |
| Intake form | Turbocharging |
| Engine layout | Horizontally placed |
| Cylinder arrangement | L |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Valve distributing mechanism | DOHC |
| Total engine horsepower (Ps) | 154 |
| Total engine power (kW) | 113 |
| Maximum net power (kW) | 110 |
| Energy type | Extended-range |
| Fuel grade | 95# |
| Fuel supply method | Direct injection |
| Cylinder head material | Aluminium alloy |
| Cylinder material | Aluminium alloy |
| Emission standard | Euro Ⅵ |
| Electric Motor | |
| Front motor model | TZ180XS118 |
| Rear motor model | TZ190XY107 |
| Motor Type | Permanent magnet/synchronous |
| Total motor power (kW) | 300 |
| Total motor horsepower (Ps) | 408 |
| Total motor torque (N-m) | 529 |
| Maximum power of front motor (kW) | 130 |
| Maximum torque of front motor (N-m) | 220 |
| Maximum power of rear motor (kW) | 170 |
| Maximum torque of rear motor (N-m) | 309 |
| System comprehensive power (kW) | 300 |
| System comprehensive horsepower (Ps) | 408 |
| System comprehensive torque (N·m) | 529 |
| Number of drive motors | Dual motor |
| Motor layout | Front+rear |
| Battery Type | LFP battery |
| Battery brand | CATL/Sunwoda |
| Battery specific technology | Using flame retardant materials and thermal runaway protection technology |
| Battery cooling method | Liquid cooling |
| WLTC pure electric cruising range (km) | 182 |
| CLTC pure electric cruising range (km) | 212 |
| WLTC comprehensive range (km) | 1160 |
| CLTC comprehensive range (km) | 1390 |
| Battery energy (kWh) | 36.8 |
| 100 km power consumption (kWh/100km) | 21.1 |
| Fast charging function | Support |
| Battery fast charging time (hours) | 0.33 |
| Battery slow charging time (hours) | 6 |
| Battery fast charging capacity range (%) | 20-80 |
| Battery slow charging capacity range (%) | 0-100 |
| Slow charging interface location | Car right rear side |
| Fast charging interface location | Car right rear side |
| External AC discharge power (kW) | 3.5 |
| Minimum allowable value for external discharge (%) | 20 |
| Transmission | |
| Abbreviation | Electric vehicle single speed gearbox |
| Number of gears | 1 |
| Gearbox type | Fixed ratio gearbox |
| Chassis steering | |
| Drive mode | Dual motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension |
| Rear suspension type | Five-link independent suspension |
| Assist type | Electric assist |
| Body structure | Load-bearing |
| Wheel brake | |
| Front brake type | Ventilated disc |
| Rear brake type | Ventilated disc |
| Parking brake type | Electronic parking |

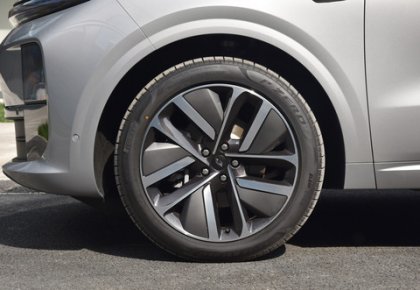

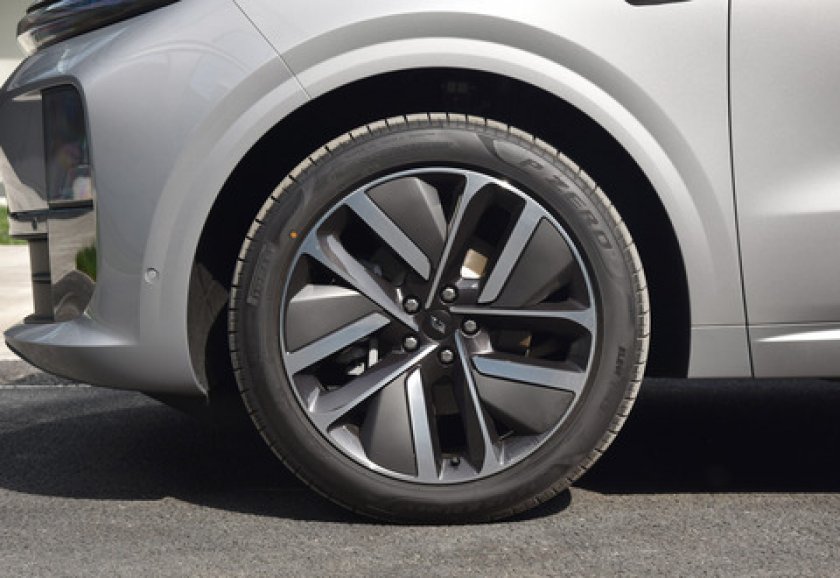

| Front tire specification | 255/50 R20 |
| Rear tire specification | 255/50 R20 |
