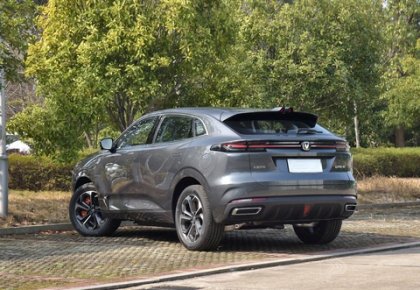

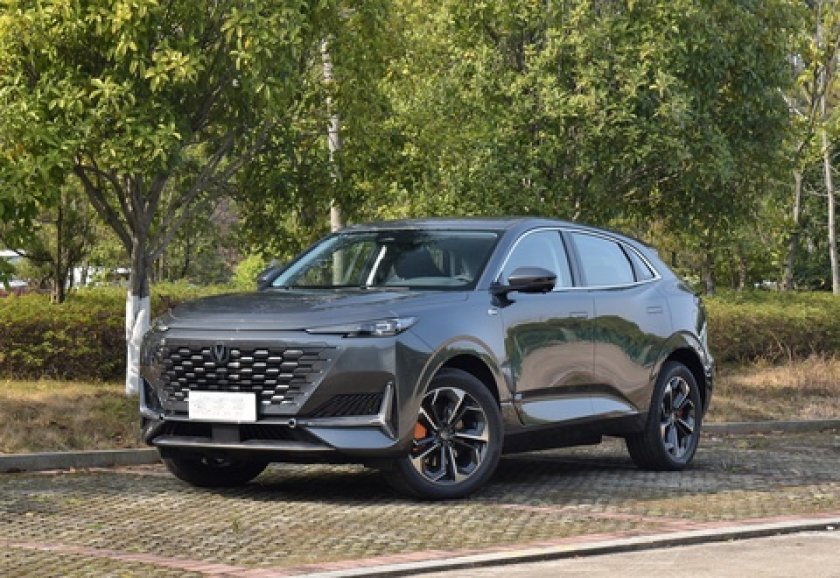

CHANGAN UN-K iDD 1.5T Plug-in Hybrid Car 135km Smart-fun Type
| Basic information | |
| Brand name | CHANGAN |
| Model | UN-K iDD 1.5T 135km Smart-fun Model |
| LEVEL | Middle SUV |
| Power Type | Plug-in hybrid |
| NEDC pure electric cruising range (km) | 205 |
| WLTC pure electric cruising range (km) | 117 |
| Battery fast charging time (hours) | 0.5 |
| Battery slow charging time (hours) | 4 |
| Battery fast charging capacity range (%) | 30-80 |
| Transmission | 6-speed three-clutch electric drive transmission |
| Body structure | 5-door 5-seat SUV |
| Engine | 1.5T 170hp L4 |
| Motor(Ps) | 150 |
| Length*width*height (mm) | 4865*1948*1690 |
| Official 0-100km/h acceleration | 8.1 |
| Maximum speed (km/h) | 200 |
| NEDC comprehensive fuel consumption (L/100km) | 0.9 |
| WLTC comprehensive fuel consumption (L/100km) | 1.95 |
| Minimum state of charge fuel consumption (L/100km) | 6.8 |
| Electric energy equivalent fuel consumption (L/100km) | 1.97 |
| Curb weight (kg) | 2075 |
| Maximum full load mass (kg) | 2450 |
| Body | |
| Length(mm) | 4865 |
| Width(mm) | 1948 |
| Height(mm) | 1690 |
| Wheelbase(mm) | 2890 |
| Front wheel track(mm) | 1636 |
| Rear wheel track(mm) | 1650 |
| Minimum ground clearance with full load (mm) | 157 |
| Approach angle | 19 |
| Departure angle | 27 |
| Body structure | SUV |
| Door opening method | Swing door |
| Number of doors | 5 |

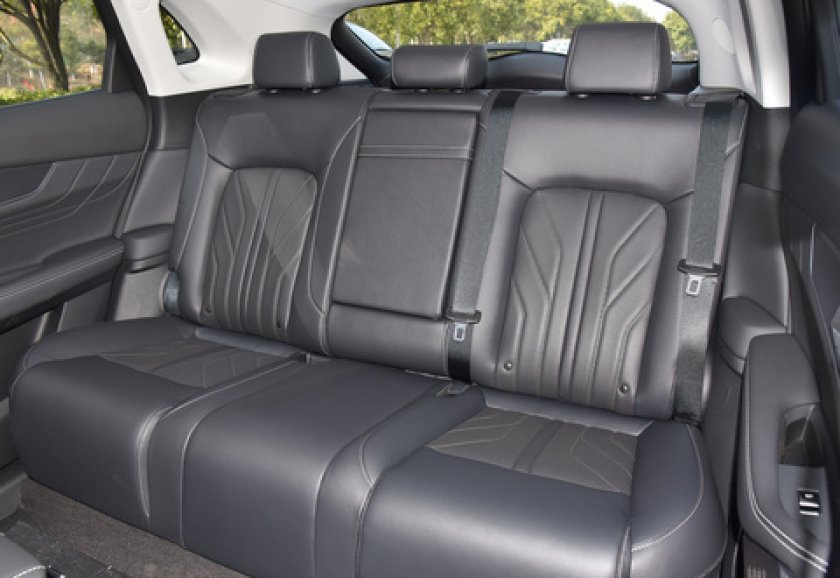

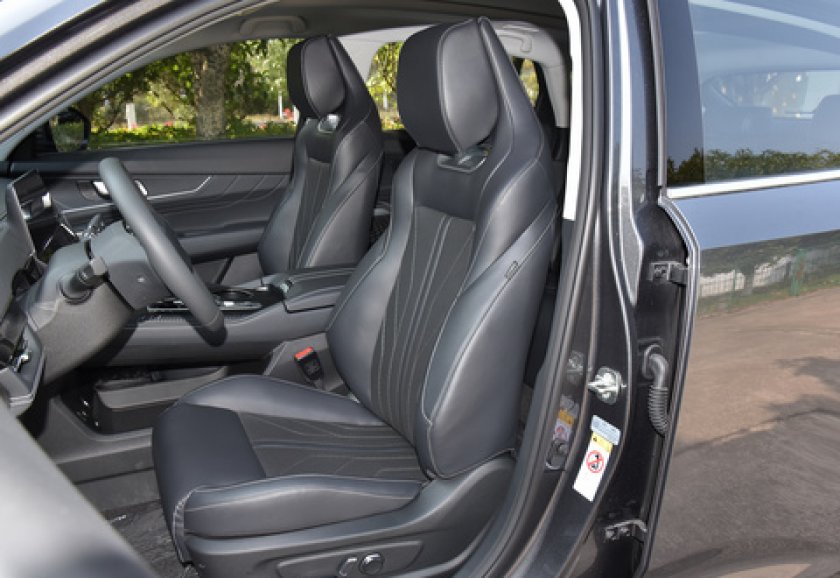

| Number of seats | 5 |
| Fuel tank volume (L) | 53 |

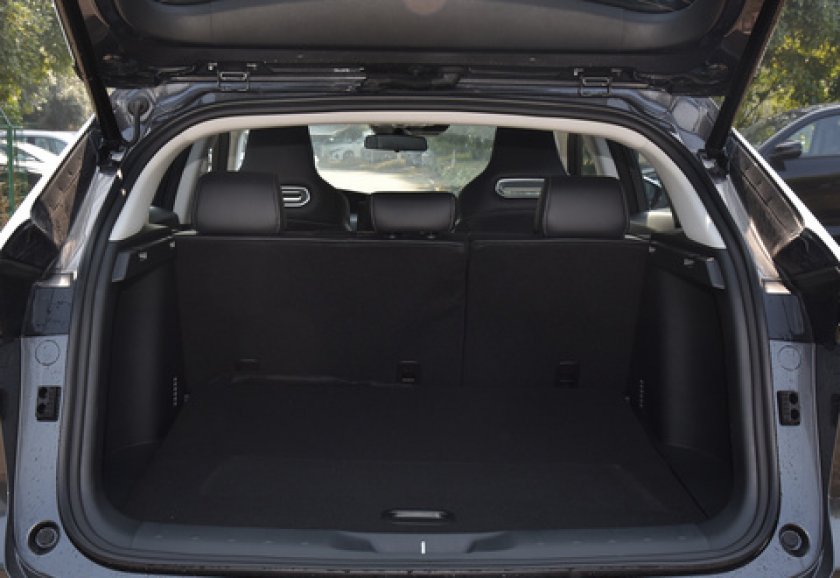

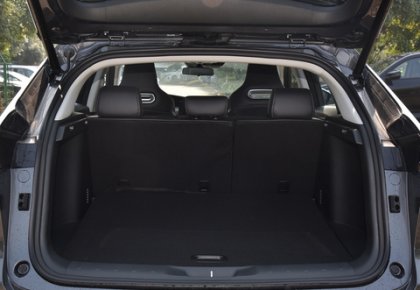

| Trunk volume (L) | 518-1412 |

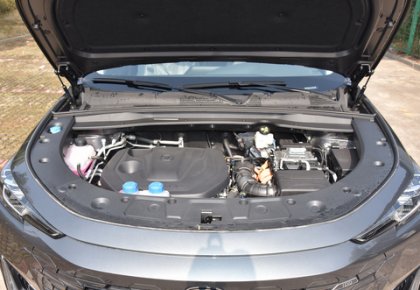

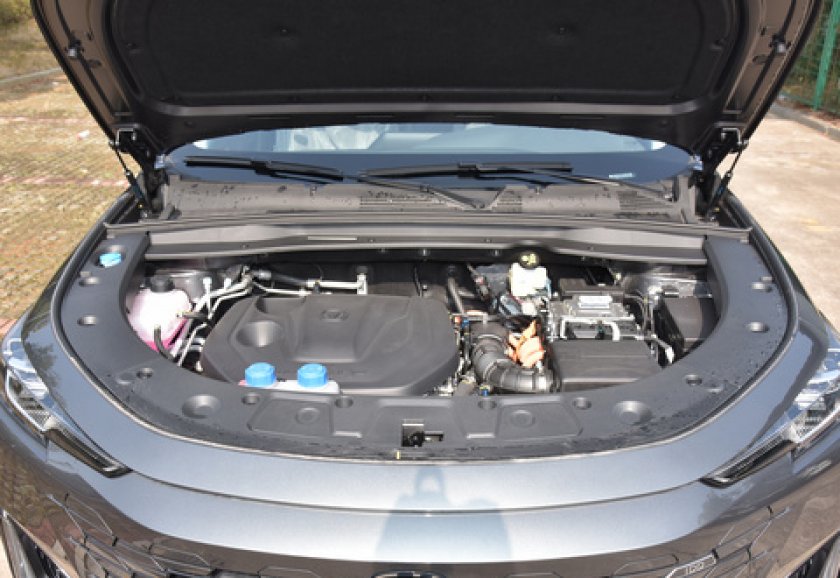

| Engine | |
| Engine model | JL473ZQ6 |
| Displacement (mL) | 1494 |
| Displacement (L) | 1.5 |
| Intake form | Turbocharging |
| Engine layout | Horizontal |
| Cylinder arrangement | L |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Valve distributing mechanism | DOHC |
| Total engine power (kW) | 170 |
| Total engine horsepower (Ps) | 125 |
| Maximum power speed (rpm) | 5500 |
| Maximum torque(N-m) | 255 |
| Maximum torque speed (rpm) | 1500-4000 |
| Maximum net power (kW) | 122 |
| Energy type | Plug-in hybrid |
| Fuel grade | 92# |
| Fuel supply method | Direct Injection |
| Cylinder head material | Alluminum alloy |
| Cylinder material | Alluminum alloy |
| Emission standard | Euro Ⅵ |
| Electric Motor | |
| Front motor model | TZ270XS453 |
| Motor Type | Permanent magnet/synchronous |
| Total motor power (kW) | 110 |
| Total motor horsepower (Ps) | 150 |
| Total motor torque (N-m) | 330 |
| Maximum power of front motor (kW) | 110 |
| Maximum torque of front motor (N-m) | 330 |
| Number of drive motors | Single motor |
| Motor layout | Front |
| Battery Type | LFP battery |
| Battery brand | China Airlines/CATL |
| Battery cooling method | Liquid cooling |
| NEDC pure electric cruising range (km) | 135 |
| WLTC pure electric cruising range (km) | 117 |
| Battery energy (kWh) | 28.4 |
| 100 km power consumption (kWh/100km) | 17.4 |
| Fast charging function | Support |
| Battery fast charging time (hours) | 0.5 |
| Battery slow charging time (hours) | 4 |
| Battery fast charging capacity range (%) | 30-80 |

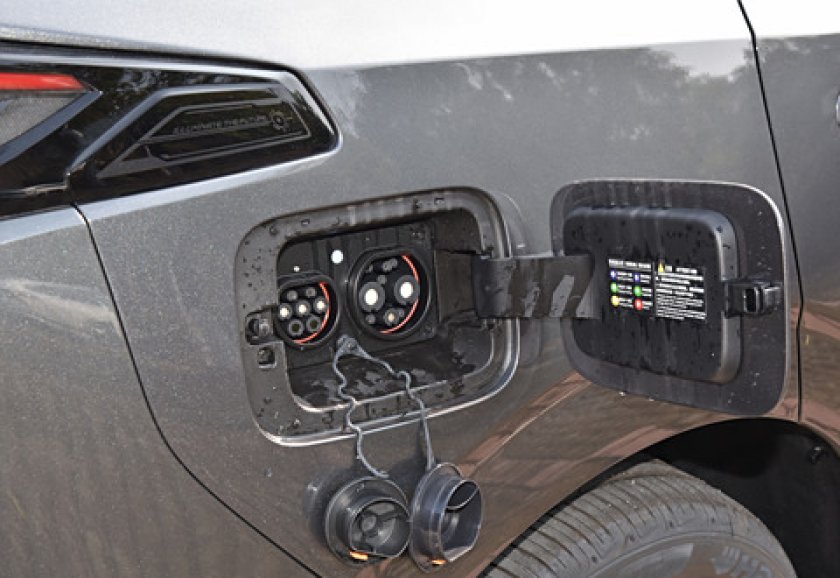

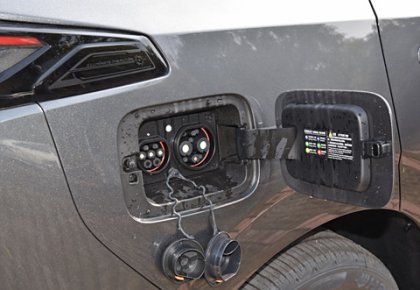

| Slow charging interface location | Right rear |
| Fast charging interface location | Right rear |
| Transmission | |
| Abbreviation | 6-speed three-clutch electric drive transmission |
| Number of gears | 6 |
| Gearbox type | Three-clutch electric drive transmission |
| Chassis steering | |
| Drive mode | Front-engine Front-drive |
| Front suspension type | MacPherson independent suspension |
| Rear suspension type | Multi-link independent suspension |
| Assist type | Electric assist |
| Body structure | Load-bearing |
| Wheel brake | |
| Front brake type | Ventilated disc |
| Rear brake type | Disc |
| Parking brake type | Electronic parking |

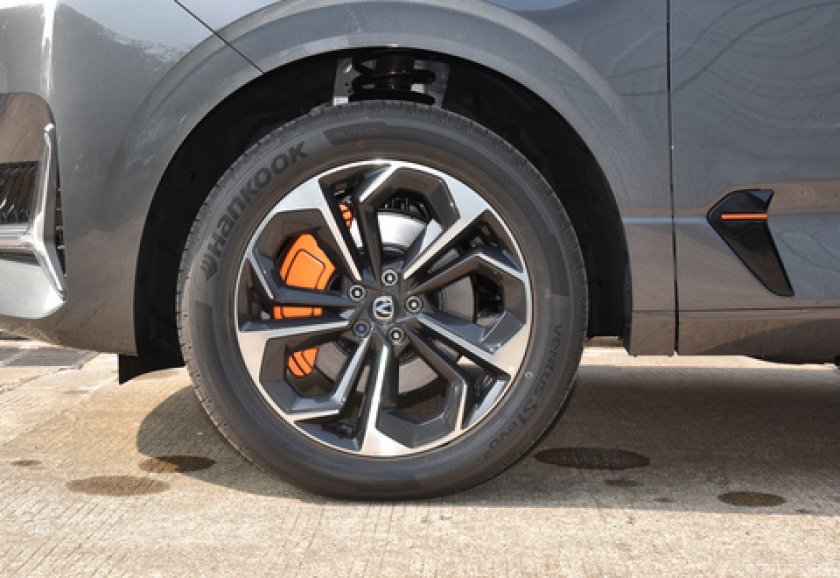

| Front tire specification | 255/50 R20 |
| Rear tire specification | 255/50 R20 |
